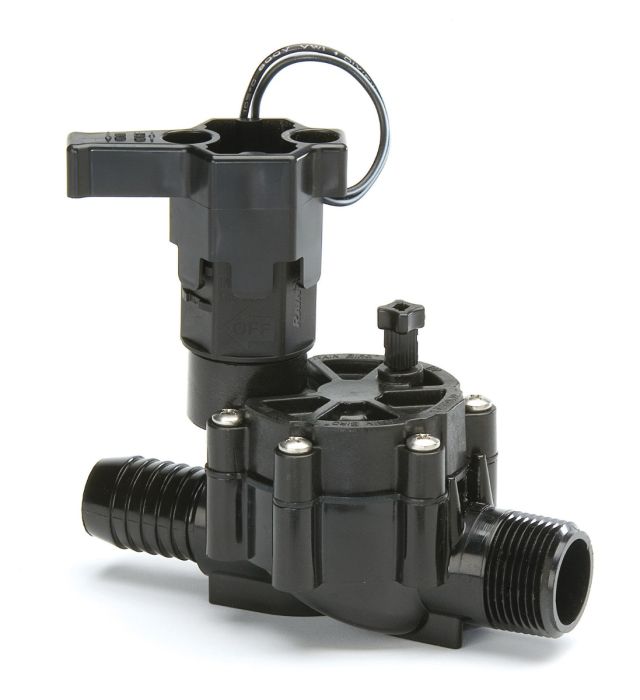

Rain Bird Valve - DV Series 24VAC
ITEM#
ITRB-E 100DVMB
MANUFACTURER#
B70840
The Rain Bird Valves - DV/DVF Series is a compact design for greenhouse, nursery, orchard and light commercial turf applications.
Clearance price while inventory lasts. Final sale, no refunds or exchanges.
Original price:CAD$37.57
Available online
Clearance
CAD$20.07
| Manufacturer No. | Model | Size | Flow | Dimensions (H x L x W) |
|---|---|---|---|---|
| B70840 | DV Male by Barb Valve | 1'' | 1 to 40 gpm |
5½'' (14 cm) 5¾'' (14.6 cm) 3-1/3'' (8.4 cm) |
Features
- Globe configurations
- Heavy-duty PVC construction
- Double-filtered pilot flow: diaphragm with self-cleaning filter in addition to
- Solenoid filter
- Manual ON/OFF control with 1/4-turn of solenoid. Spray-free internal bleed
- One-piece solenoid with captured plunger
- Encapsulated solenoid
- External bleed screw
- Stainless steel phillips head screws
- Industry-leading 5 year warranty
Specifications
Flow:
- 075-DV : 0,20 to 22 gpm
- 100-DV : 0.20 to 40 gpm
Pressure: 1 to 10.4 bar (23° C)
Temperature: up to 43°C
ELECTRICAL SPECIFICATIONS
Solenoid: 24 VAC - 50 Hz
Inrush current: 0.30 A (7.2 VA)
Holding current: 0.19 A (4.6 VA)
Rain Bird Valves - DV/DVF Series
