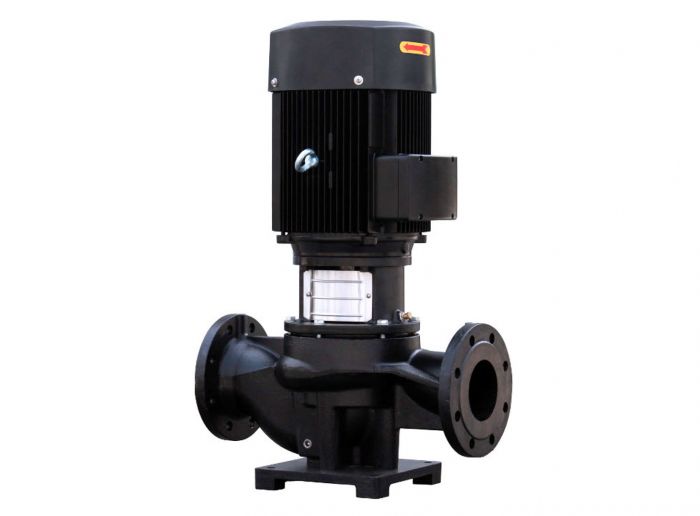

PS9K motor and CS-G100 pump

Coming Soon

Due to the higher size of certain products, a request for shipping quote must be completed. You must add the item to your cart and confirm the quote request. Once calculated, we will send you the quote including the shipping costs.

Read More

LORENTZ PSk-CS surface pumps are multistage vertical pumps designed to provide a very high volume of water from a solar energy source. PSk surface pumps are generally used for irrigation projects and large-scale drinking water applications.

This kit contains a PS9K motor and a CS-G100 pump.



  • Very interesting return on investment versus diesel motor pumps
  • Water production cost and carbon footprint reduction
  • Long useful life and proven efficiency
  • Designed for remote usage
  • Resists challenging conditions
  • Smart modular design for better maintenance and simple repairs
  • Low-cost replacement parts



  • Made in Germany
  • Non corrodable, high quality material
  • Direct photovoltaics with alternating current connection options
  • MPPT technology to optimize the energy consumption of PV panels
  • Air-cooled high efficiency three-phase motor
  • Built-in recorder in the controller with display of main operating data


    Motor AC DRIVE CS-G 7.5kW

    • Hightly efficient 3-phase AC motor
    • Frequency max. 51 Hz
    • Efficiency : max. 92 %
    • Motor speed : 1,150 to 2,905 rpm
    • Insultation class : F
    • Enclosure class : IP55


      Pump End PE CS-G100-22/2

      • Premium materials


        Pump Unit PU CS-G100-22/2 (Motor, Pump End)

        • Water temperature : max. 90 °C (194 °F)
        • Suction head : max. 3m (10’)
